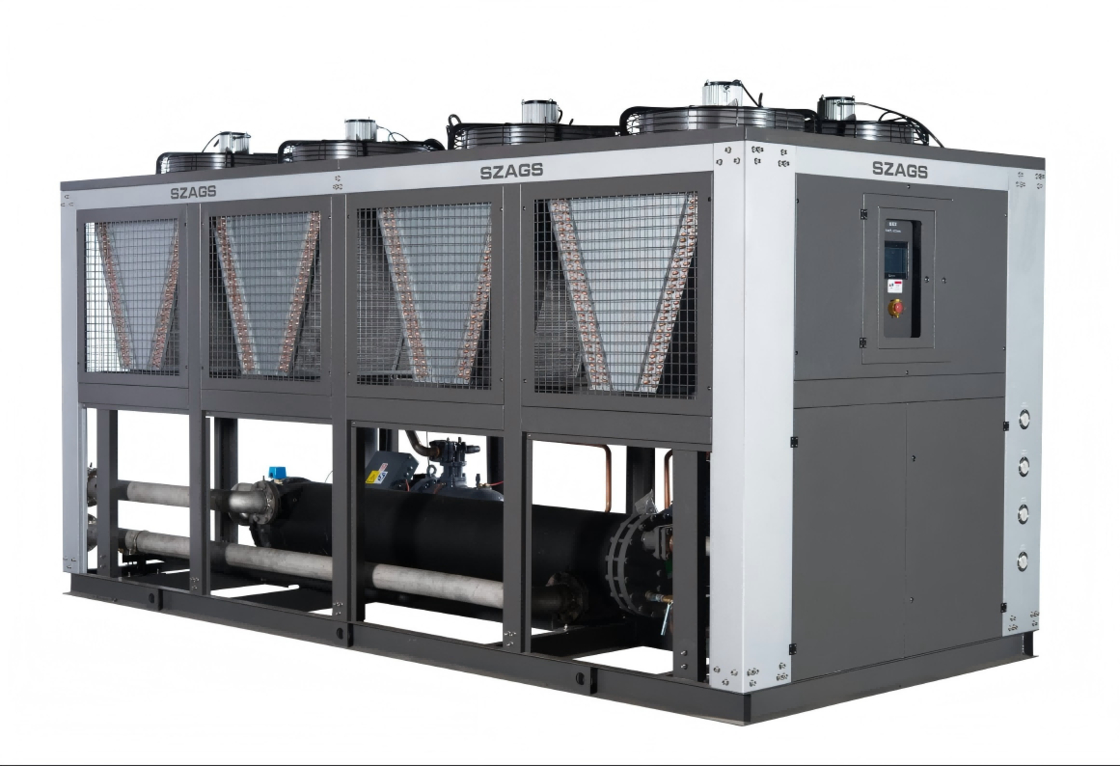

170HP Inverter Air-cooled Screw Type Water Chiller for Industrial Cooling

170HP Inverter Air-cooled Screw Type Water Chiller for Industrial Cooling

Our variable frequency air-cooled screw chiller is designed for high-efficiency industrial cooling applications. Equipped with advanced inverter technology, it delivers stable performance, precise temperature control, and significant energy savings compared to traditional models.

                     Technical Parameter of Air-cooled Screw Type Chiller

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃

Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 35℃

Outlet cooling air temperature: 45℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

Temperature difference between inlet and outlet cooling air is from 8℃ to 12℃.

The machine can be used while the ambient temperature is below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.

Air-cooled screw chiller featurers

1.Adopting high-efficiency and energy-saving compressors of world class grade brands, high-quality condensers and evaporators, high cooling efficiency, stable performance, low noise and long service life.

2.The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.

3.Screw compressor chiller capacity control can adopt four-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless control system.

4.High-efficiency internally threaded copper pipes enhance the heat transfer effect are more energy efficient.

5.The machine is all made of oshell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.

Advantages of SZAGS Air-cooled Screw Chillers:

1.Fast Response: Air-cooled screw chillers can quickly adjust cooling capacity to meet instantaneous load changes, enhancing system flexibility.

2.Environmentally Friendly: SZAGS air-cooled screw chillers use environmentally friendly refrigerants, reducing environmental impact and complying with modern eco-friendly requirements.

3.Easy Operation: User-friendly control systems simplify operation and monitoring, reducing reliance on specialized personnel.

4.High Durability: SZAGS Air-cooled screw chillers are made of high-quality materials and designs, offering a long service life and reducing replacement frequency.

5.Energy-Saving Options: SZAGS air-cooled screw chillers are designed with capacity control range 0-25-50-75-100%, which automatically adjusts operating speed based on actual load, further saving energy.

6.Suitable for Various Industrial Applications: SZASG Air-cooled screw chillers are widely used in chemical, food processing, pharmaceutical, and plastic manufacturing industries, demonstrating strong adaptability.

FAQ:

Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
Cooling capacity; If you don't know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements; Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system.
The units will be fully tested before package and The packing will be carefully checked.

Q3: What's the warranty?
A3: 1 year warranty for all machines.
